FIXclip-Bar GLE17

Description

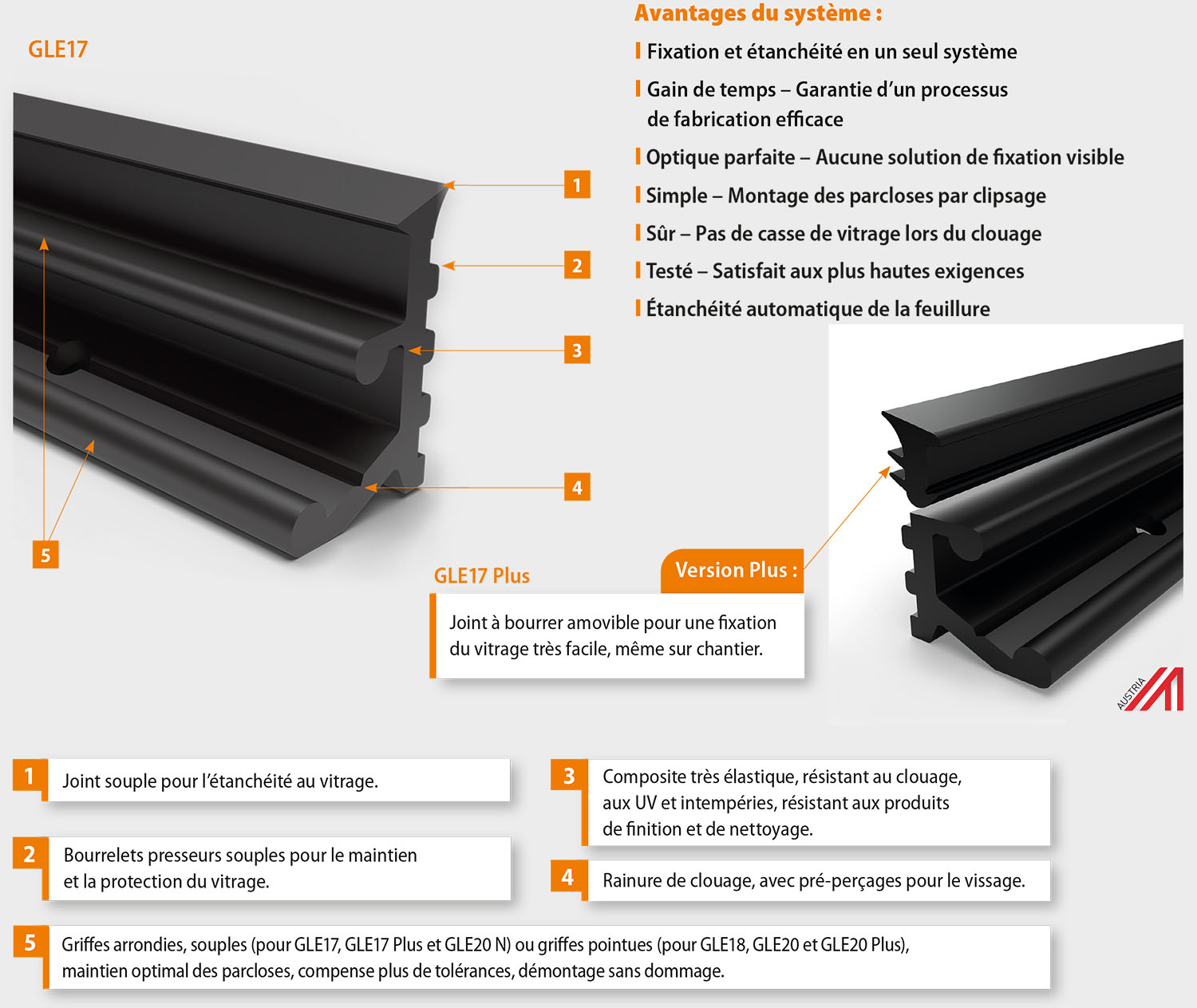

The FIXclip-Bar GLE17 is an innovative system for glazing fixing and sealing in a single operation, specially designed for 13 mm wide glazing beads and a 16 mm rebate engagement. This PVC profile, rigid and flexible, UV-resistant, facilitates the installation and maintenance of wooden windows and doors. It is available with a welded sealing gasket or in a version with a stuffed gasket for an optimal fit and an impeccable aesthetic result. Available Variants -GLE17: Standard for glazing beads from 13 mm. -GLE17 plus: Compatible with smaller sections, providing increased anti-intrusion protection. Technical Features -Material: Rigid and flexible PVC, UV-resistant -Color: Black -Standard dimensions: 6 m length (option for 2.3 m lengths for small quantities) -Fixing: Screwing with 3×20 mm countersunk head screws or nailing with 1.2×25 mm pins Applications Suitable for windows and doors, such as IV68 insulating windows or fixed glazing Advantages -Perfect look: Invisible fixing and optimal sealing -Quick installation: Easy clipping with no risk of breakage -Adjustable: Compatible with small-section glazing beads, tolerance compensation

Caractéristiques techniques
