Technical characteristics
- Measuring equipment type
- Beam colour
- IP rating
- Energy source
- Measurement accuracy
- Reach
- Manufacturer reference
A question about installation, quantities or lead times?
PRAXI replies by e-mail. Free.
Description

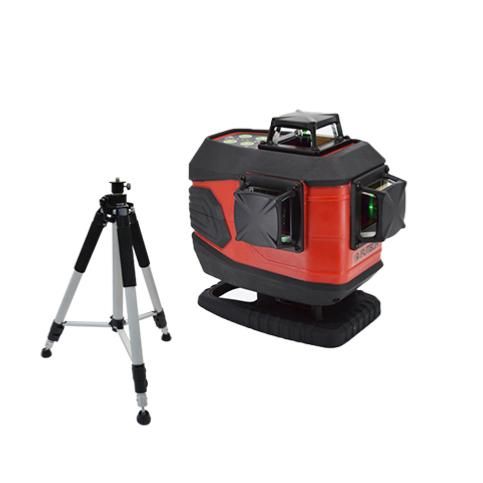

The Futech MC4DE is a multiline laser with a green beam which projects one 360° horizontal line and two 360° vertical lines, forming an upper and a lower plumb point as well as four right angles. Pendulum levelling operates within a ± 4° range and the stated accuracy is 1 mm at 10 m; an electronic slope function completes the arrangement. The data sheet indicates a 2 x 60 m range, the 60 m reach only being achieved with a receiver offered as an option, the laser having a 10 kHz receiver mode for that purpose. Four class 2M diodes emitting at 532 nm provide the visibility of the line. The housing is IP54 protected and mounts on a 1/4 thread. Power comes from a lithium-ion battery together with its charger and mains adapter. The set is supplied with a carrying case, a wall mount, a target, a pair of protective glasses and a tripod.
