Description

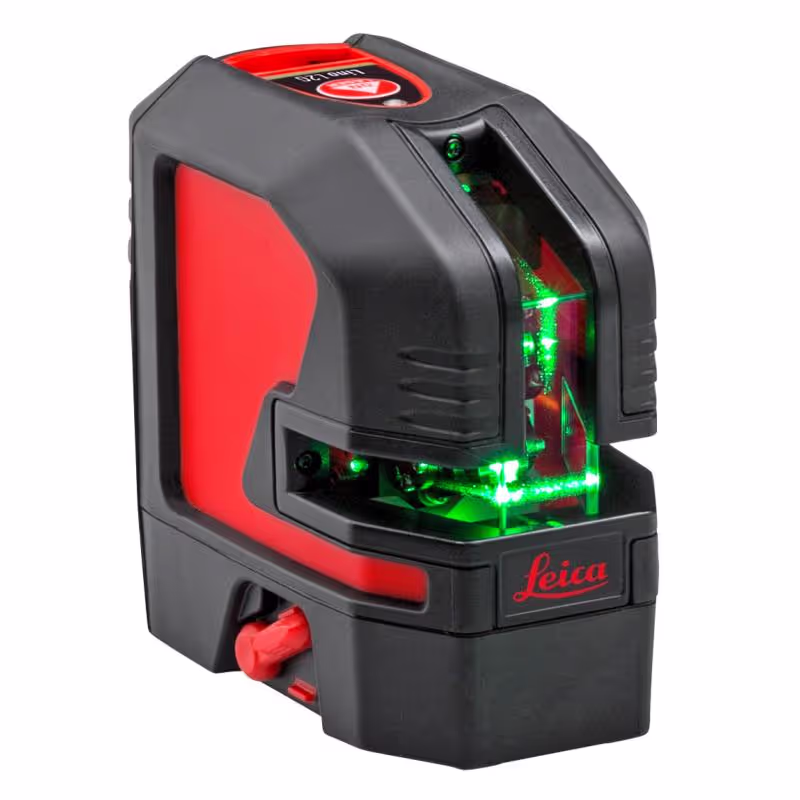

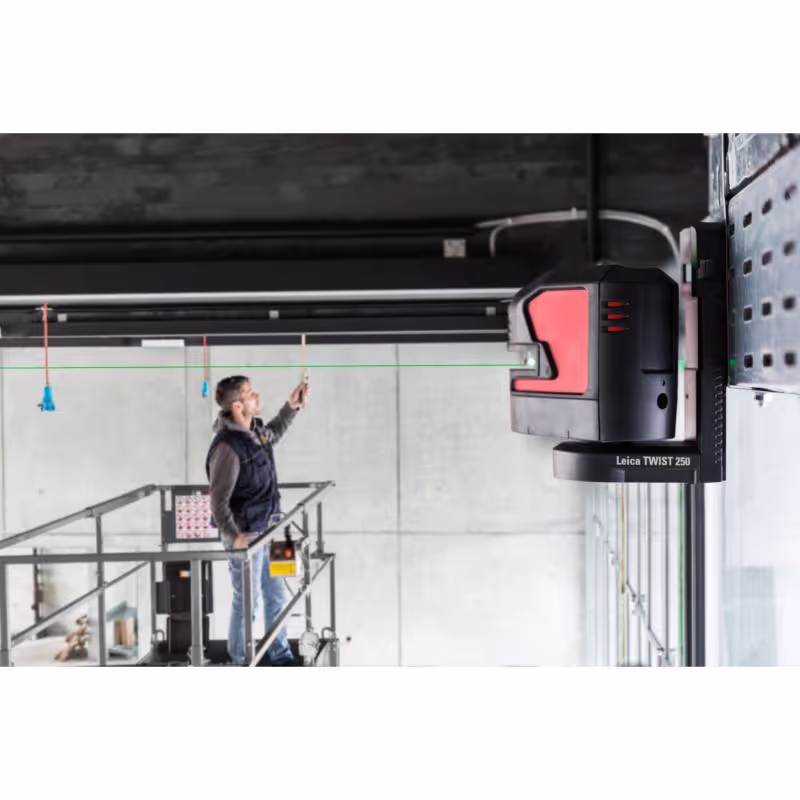

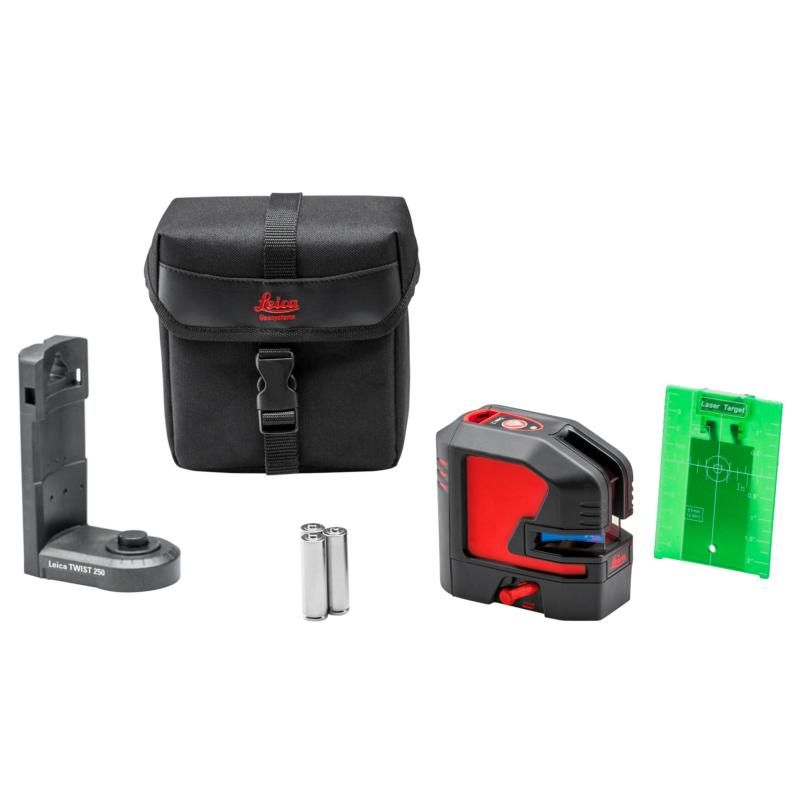

The Leica Lino L2G-S is the battery-powered version of the green cross line laser from Leica Geosystems: it automatically sets out a horizontal line opened to more than 180° and a vertical line that passes above the instrument. The 525 nm class 2 green beam stays legible in bright light as well as at a distance. Pendulum levelling covers ± 4° and switches off on demand to project a line at any slope; the range reaches 30 m to the naked eye and up to 80 m with a receiver. The stated levelling accuracy is ± 0.2 mm/m. Compact at 110 x 60 x 100 mm for 530 g and IP54 protected, the instrument screws onto a 1/4 tripod, an adapter allowing the move to 5/8. Power comes from three AA batteries. The rugged case holds the Twist 250 magnetic adapter, the UAL 130 wall mount, the battery cover, a target and the calibration certificate. Two-year warranty.

A question about installation, quantities or lead times?

Technical sheet · 1 document(s)
