Solitex Quantho 3000 Connect Underlay Membrane

Description

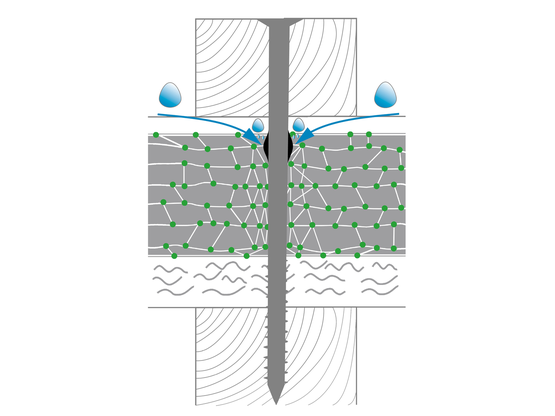

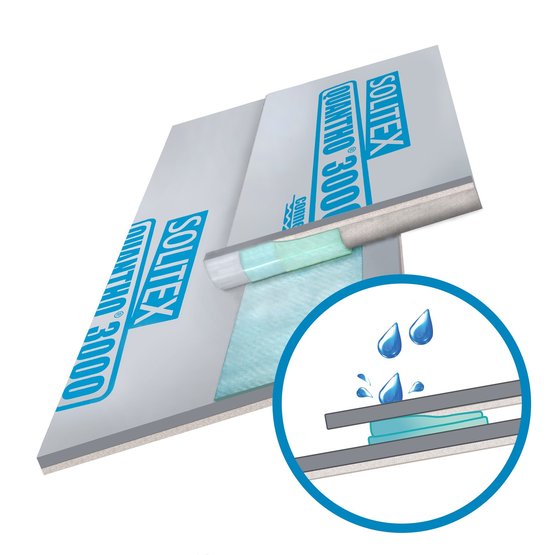

SOLITEX QUANTHO 3000 connect is an innovative roof underlay membrane with integrated self-adhesive zones for fast and effective sealing. This product offers optimal protection against the weather and ensures the safety and durability of buildings, even in extreme climatic conditions. Characteristics Material: Functional film: monolithic TPU Backing: polyester non-woven Self-adhesive zones: water-resistant SOLID adhesive Colour: Grey-blue Weight: 230 g/m² Thickness: 0.7 mm sd value: 0.16 m Reaction to fire: Class E (NF EN 13501-1) Weather exposure: 3 months (4 months in Switzerland and Belgium) Hail resistance: Class RG 5 (NF EN 13583) Sealing: Perforation points: ETA-23/0532 Junctions: W1 Operating temperatures: From -40 °C to +100 °C Available dimensions: 50 m x 1.5 m (75 m²) 25 m x 3 m (75 m²) Advantages Maximum protection: High resistance against hail (class RG 5). Ease of installation: Integrated self-adhesive zones for fast and effective sealing. Flexibility on site: Resists weather for at least 3 months. Exceptional durability: Maximum thermal stability and ageing resistance. Enhanced safety: Usable as temporary covering. Field of application Use: Water vapour permeable roof underlay membrane. Compatible substrates: Boarding, underlay panels (MDF or wood fibre), rafters and thermal insulation. Minimum slopes: ≥10° with TESCON NAIDECK sealing tape ≥14° without additional sealing tapes.
