The KLH Panel

Description

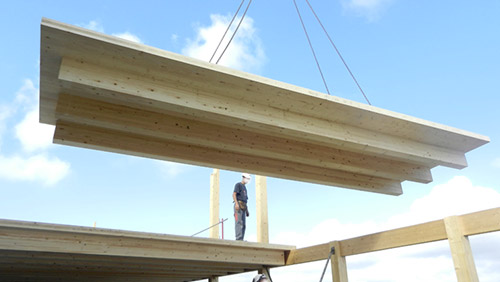

The KLH panel, or CLT (Cross Laminated Timber), is a cross-laminated solid wood panel composed of crossed plies. With a thickness of 60 to 500 mm and dimensions up to 2.95 m x 16.50 m, it offers great dimensional stability and remarkable mechanical, thermal and environmental performance. It integrates perfectly into all types of construction: walls, floors, roofing or waterproofing supports, while adapting to seismic zones. Easy to combine with other materials such as concrete or metal, it makes it possible to quickly build high-performance and durable buildings. Features Panel thickness: From 60 to 500 mm Maximum dimensions: 2.95 m x 16.50 m Structure: Longitudinal and transverse solid wood boards glued under high pressure Certifications: CSTB technical assessment (renewed in 2020) Performance: Dimensional stability, mechanical strength, thermal and ecological insulation Suitable for seismic zones: Designed to withstand the structural constraints of at-risk areas Advantages Great versatility: Suitable for all types of buildings (residential, commercial, school, sports). Dimensional stability: The cross-ply structure allows loads to be distributed in two directions. Speed of execution: Construction of high energy-efficiency buildings in short timeframes. Ecological and bio-based: Made from certified sustainable wood. Compatibility with other materials: Can be combined with concrete, metal or wood to maximize performance. Suitable for seismic zones: Validated for safe construction in earthquake-prone regions. Applications Load-bearing walls Floors and roofing supports Waterproofing supports Construction in seismic zones Complex architectural projects requiring great design freedom

Caractéristiques techniques
