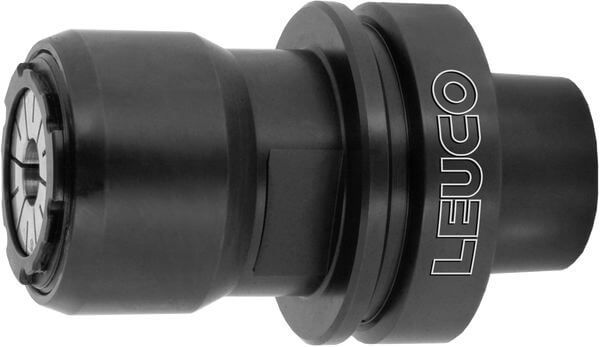

Collet chuck system 462E/OZ25 with HSK 63F LEUCO

Description

Collet chuck system 462E/OZ25 with HSK 63F LEUCO is intended for CNC machining centres, in particular 5-axis machines. It is used for the high-precision clamping of tools with a cylindrical shank. What the LEUCO design provides: recessed clamping nut, hardened and ground, for collets slotted on both sides and max. speed = 24,000 rpm. What the manufacturer highlights: slim design, great stability even with large projections, high concentricity accuracy and high clamping force. This range covers 6 versions: diameter of 63 mm and overall length from 101 to 250 mm. Notes on use: available in left-hand design, the delivery includes: collet chuck with clamping nut but without collet and mounting accessories, and tightening torque: 462E/OZ25: 150 Nm (110 Lbf.ft).
