DIAMAX DP facing cutters HSK 32R, HOLZ-HER, AirStream-System
Router bits & drill bits
Description

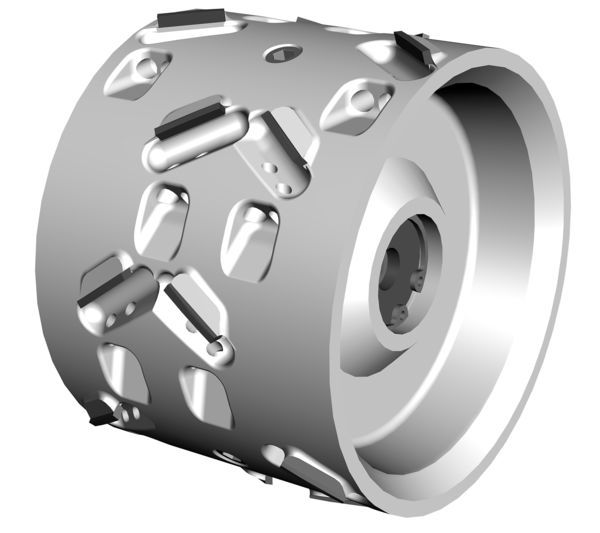

DIAMAX DP facing cutters HSK 32R, HOLZ-HER, AirStream-System equip HOLZ-HER throughfeed machines with unit FG701. Applications intended by the manufacturer: the chip-free, noise-free facing of paper-coated, HPL-coated, melamine-faced and laminated panels. Design details given by the manufacturer: with the patented AirStream system, symmetrical version, 35° axial angle and integrated balancing screws. Benefits claimed in use: optimal edge bonding, a substantial improvement in noise and output thanks to the AirStream system, a substantially higher chip capture rate thanks to the AirStream system, and longer tool life thanks to reduced double hogging and optimal concentricity. The article group brings together 4 versions: outside diameter of 100 mm, cutting width from 42.3 to 63 mm and 3 teeth. Cutting material: polycrystalline diamond (DP). Conditions of use specified by LEUCO: direction of rotation to VDMA 8849.
Technical characteristics
Tool type (drill bit)
Cutting material
Manufacturer reference
