Description

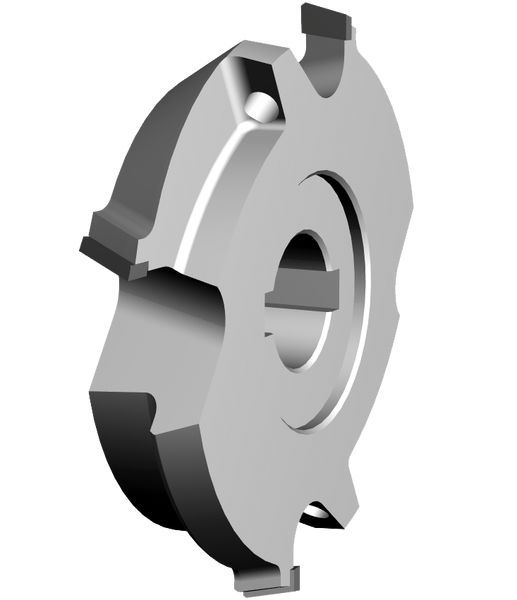

DIAMAX edge flush trim and chamfering cutters DP LEUCO are intended for HOLZ-HER edge banding machines, unit FR701. They are used for chamfering and flush trimming edge bands in solid wood, veneer and plastics. What the LEUCO design provides: with axial angle, polished tooth face and clearance face, airStream-System and max. speed = 24,000 rpm. What the manufacturer highlights: the AirStream-System raises the chip capture rate substantially, the machine is no longer cluttered with chips, malfunctions caused by chips eliminated, and lower extraction power. This range covers 2 versions: outside diameter of 70.5 mm, bore of 16 mm and 2 teeth. Cutting material: polycrystalline diamond (DP). Notes on use: constant basic dimensions a and D1, direction of rotation to VDMA 8849, and no regrinding provided for.
