DIFFLEX THERMO TPU ND underlay screen

Description

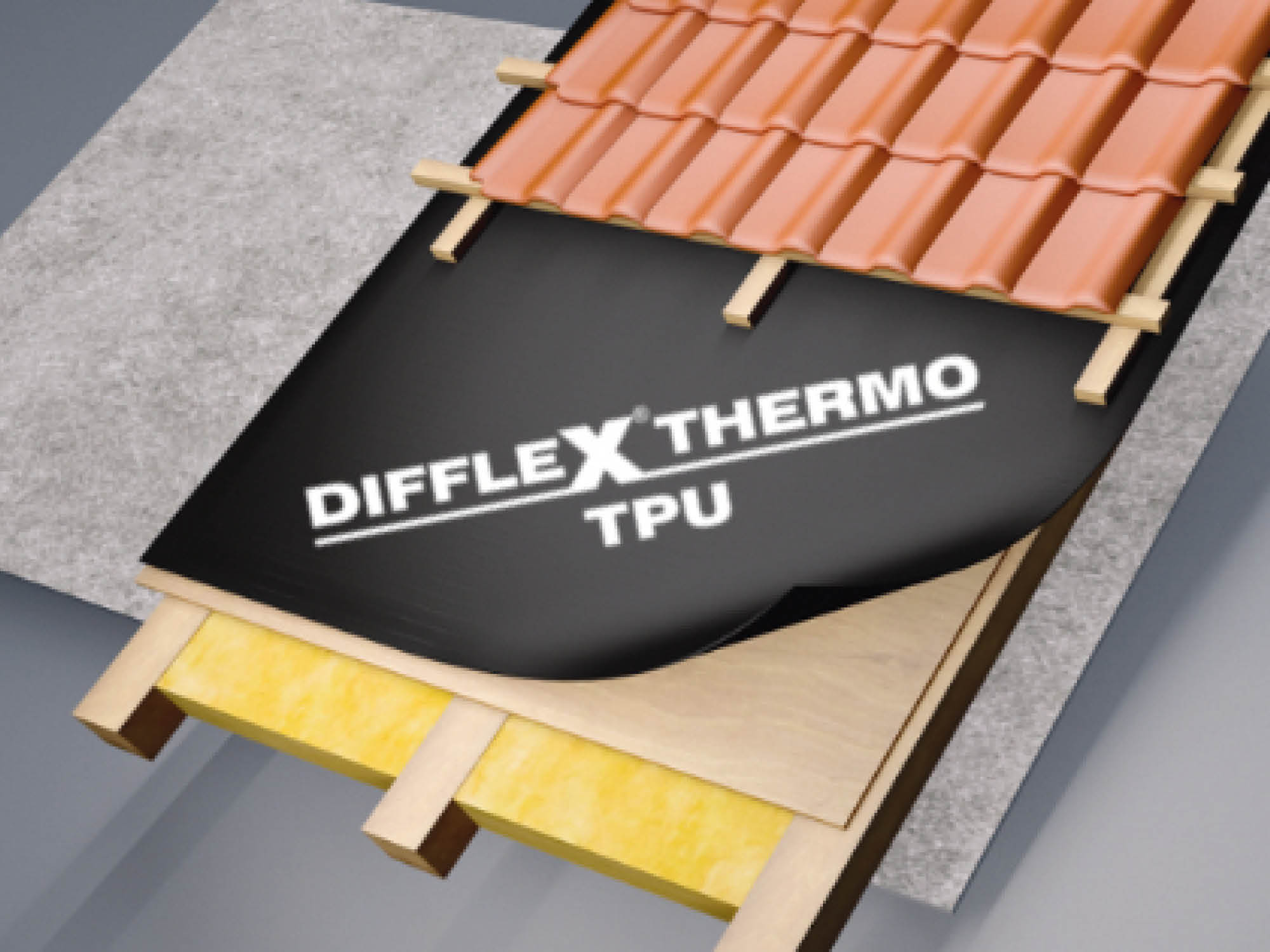

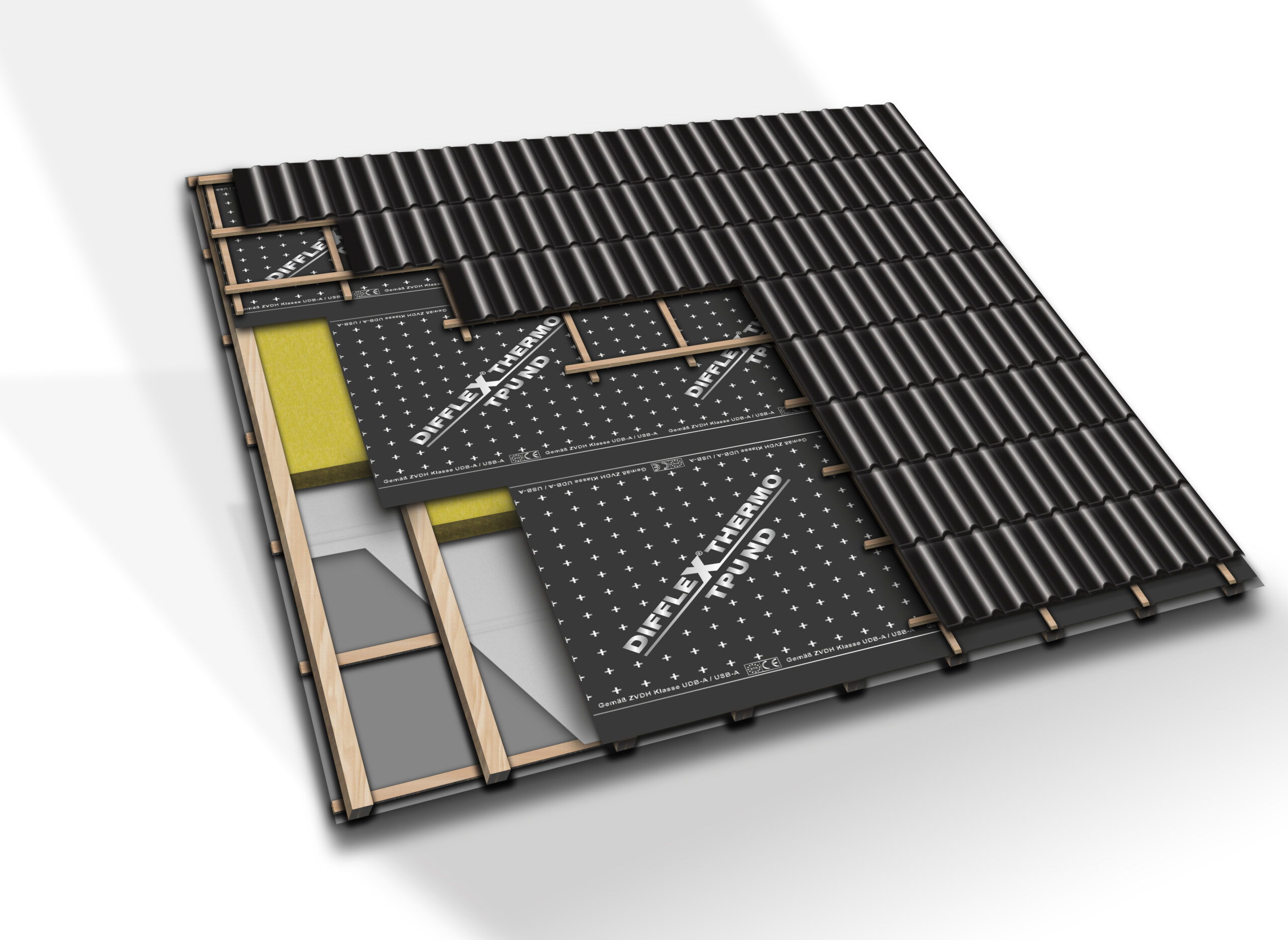

DIFFLEX THERMO TPU ND is a high-performance roof underlay screen, nail-tight, specially adapted to renovation. Composed of a polyester non-woven combined with a monolithic TPU/copolymer coating, it offers an optimal combination of waterproofing, breathability and robustness. Its integrated "SK" adhesive strips allow reliable bonding of overlaps without additional adhesive, reinforcing wind-tightness. Certified according to NF EN 13859-1 / 13859-2 and compliant with NF DTU 40.29, it meets the requirements of flexible roof underlay screens and is authorized for temporary watertightness during construction. Advantages Integrated nail-tightness, ideal in renovation. Temporary watertightness without tarpaulin during construction. Pressure rebalancing under the roof covering during high winds → limits the lifting of covering elements. Reinforced wind-tightness thanks to integrated SK adhesive strips. Protection against humidity of insulation and construction timber. Better summer comfort and limitation of parasitic air movements. Resistant to temperatures up to 100°C. 10-year warranty. Technical features Composition: Polyester non-woven + TPU/copolymer coating Water vapor permeability: Yes (highly permeable) Watertightness: To water and wind – Driving rain resistant (TU Berlin, ZVDH class 2) Packaging: 75 m² roll Pallet of 20 rolls (1,500 m²) Standards: NF EN 13859-1 / 13859-2 – DTU 40.29 Zones: Lowland climate ≤ 900 m Minimum slope: 10° 5° with nail-tightness reinforcement Applications Roof renovation (specially designed for this). Installation under nailed or hook-fixed slates. Installation under stone slabs and bituminous shingles. Low-slope roofs (according to rules). Temporary watertightness up to 3 months. Use in covering, in contact or not with the insulation.

Caractéristiques techniques
