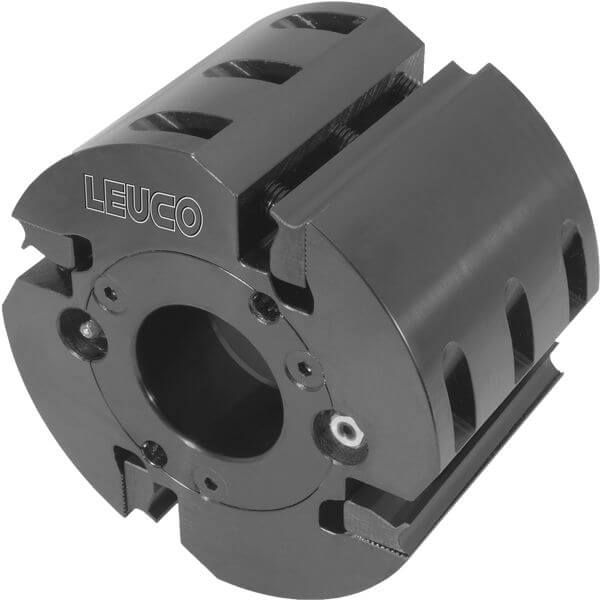

HS hydro profile tool bodies LEUCO

Description

HS hydro profile tool bodies LEUCO are aimed at hydro moulders. The tool is used for profiling solid wood. In terms of design, LEUCO provides: the maximum speed depends on the knife height, see the “maximum speed” table. Advantages highlighted by LEUCO: high feed rate with the best cut quality and no chatter marks, play-free centring thanks to the 2 hydraulic pressure chambers, Weinig system, a high level of concentricity and vibration-free rotation, and play-free positioning of the knives by precision serrations at 60 degrees with a 1.6 mm pitch. The range comes in 38 versions: outside diameter from 137 to 215 mm, bore from 40 to 50 mm, cutting width from 60 to 310 mm and number of teeth from 4 to 12. Cutting material: high-speed steel (HS). To consider before ordering: adjustable knives, profile depth and cutting diameter see table, and for blank knives with serrated back with S = 5, 8, 10 mm.
