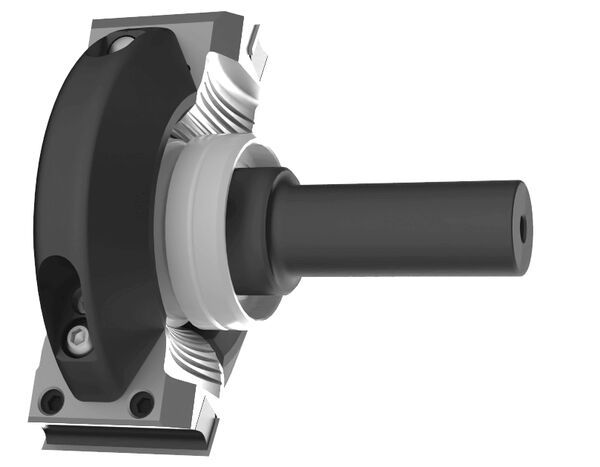

HW carbide shank chamfer tool bodies with tiltable head LEUCO

Description

HW carbide shank chamfer tool bodies with tiltable head LEUCO are designed for use on CNC machines. Their field of application covers facing, chamfering and producing raised panels in solid wood and wood-based materials. Stated design features: teeth parallel to the axis, chamfer angle 81-0-59 degrees and max. speed = 8,000 rpm. Claimed strengths: synchronous adjustment by means of an adjusting knob, easy to use, and a wide adjustment range. The series comprises 1 version: outside diameter of 125 mm, shank of 25 mm, overall length of 130 mm and 2 teeth. Cutting material: carbide (HW). Points to watch flagged by the manufacturer: direction of rotation to VDMA 8849.
