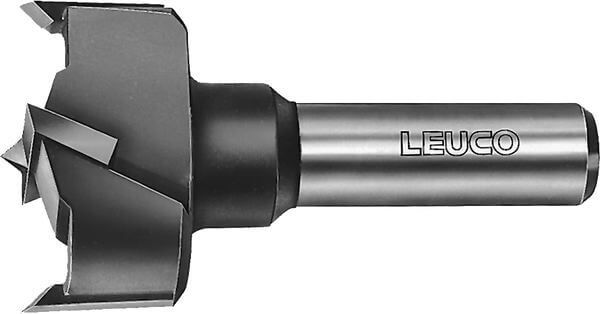

HW cylindrical head boring bit LEUCO, Z=2+2

Description

HW cylindrical head boring bit LEUCO, Z=2+2 is intended for stationary drilling machines, automatic drilling machines and CNC machining centres. It is used for the chip-free drilling of hinge holes in solid wood and wood-based materials. What the LEUCO design provides: 2 chip clearers, 2 scribers and a centring point, and brazed in HW. What the manufacturer highlights: chip-free drilling thanks to the scribers. This range covers 38 versions: drilling diameter from 15 to 40 mm, shank of 10 mm, overall length from 57.5 to 70 mm and 2 teeth. Cutting material: carbide (HW). Notes on use: cylindrical shank with flat, adjusting screw ident. no. 001600 M5x10 DIN 551 for precise length setting included in delivery, and adjusting screw ident. no. 186017 M5x11.5 for the Weeke quick-change drill chuck is to be ordered separately.
