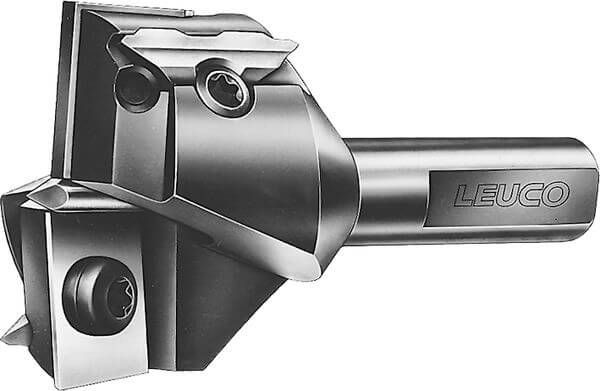

HW cylindrical head boring bit with reversible inserts LEUCO

Description

HW cylindrical head boring bit with reversible inserts LEUCO is intended for stationary drilling machines, automatic drilling machines and CNC machining centres. It is used for the chip-free drilling of hinge holes in solid wood and wood-based materials. What the LEUCO design provides: 2 chip clearers, 2 scribers and a centring point. What the manufacturer highlights: long tool life thanks to a highly wear-resistant HW grade, and chip-free drilling of the holes thanks to the scribers. This range covers 10 versions: drilling diameter from 25 to 35 mm, shank of 10 mm, overall length from 57.5 to 70 mm and 2 teeth. Cutting material: carbide (HW). Notes on use: the centring point is interchangeable and adjustable after regrinding, cylindrical shank with flat, and adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length setting included in delivery.
