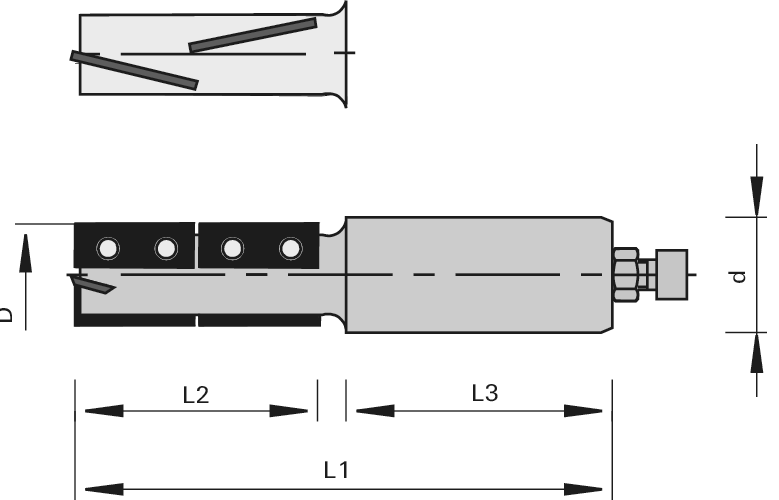

HW insert shank tool body, Z=2+2 with alternating axial angle

Description

HW insert shank tool body, Z=2+2 with alternating axial angle equips CNC machines. Applications intended by the manufacturer: facing, cutting, grooving and rebating coated wood and solid wood, and angled plunging with simultaneous use of the Z and X or Y axes. Design details given by the manufacturer: HW inserts with alternating axial angle arranged in a staggered pattern, and plunge cut: 4-edge HW insert. Benefits claimed in use: tool life x4 through the interchangeability of the upper and lower inserts. The article group brings together 5 versions: outside diameter from 20 to 30 mm, shank from 20 to 25 mm, overall length from 110 to 145 mm and 2 teeth. Cutting material: carbide (HW). Conditions of use specified by LEUCO: clamping: ps-System, TRIBOS, collet chuck, and with stop screw.
