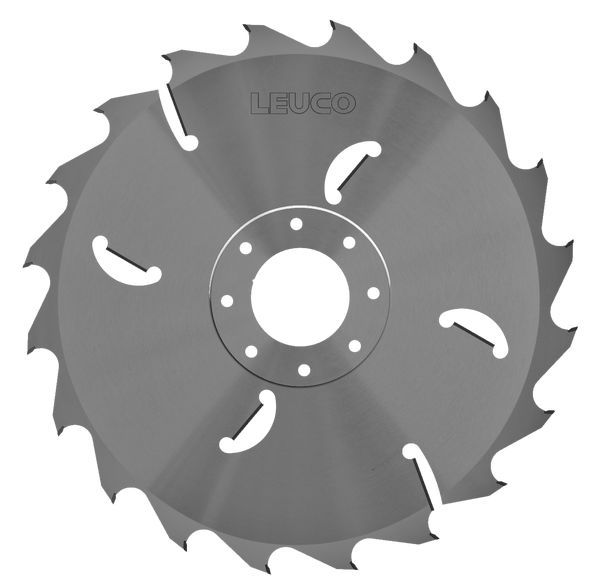

HW multi-rip breakdown saw blades with, design 2

Description

HW multi-rip breakdown saw blades with, design 2 are designed for use on breakdown machines with and without hogger. Their field of application covers ripping in wet and dry timber. Stated design features: tooth form: flat “F” and cutting material: HW HL Board 20. Claimed strengths: very high bending strength and tooth hardness, and no fouling of the blade body thanks to the carbide stabilisers. The series comprises 27 versions: outside diameter from 445 to 695 mm, bore from 110 to 170 mm, cutting width from 4.2 to 5.6 mm and number of teeth from 24 to 50. Cutting material: alloy steel (HL) and carbide (HW). Points to watch flagged by the manufacturer: the saw blade is optimised in line with the customer’s requirements and the machine parameters after consultation with AWT and to LEUCO standards, and the identification number is given for guidance only.
