HW panel sizing saw blades LEUCO, U-Cut max “TR-F”
Saw blades
Description

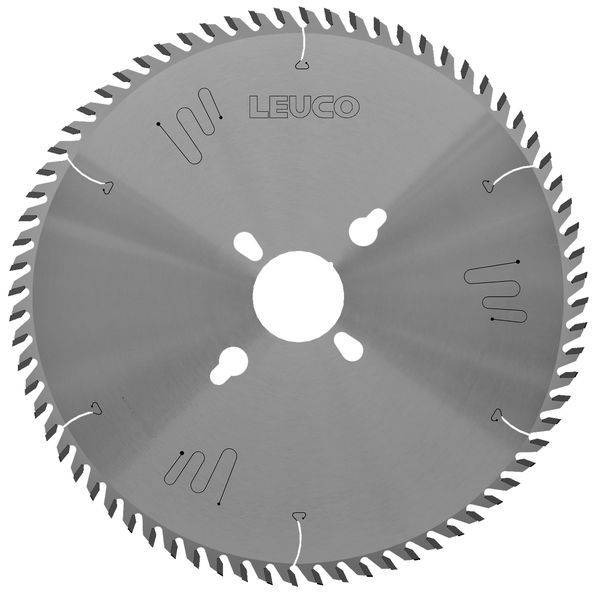

HW panel sizing saw blades LEUCO, U-Cut max “TR-F” are aimed at panel saws. The tool is used for sizing and cutting laminated and veneered wood-based materials to size. In terms of design, LEUCO provides: up to ØD=360, rake angle 10 degrees, and from ØD=380, rake angle 15 degrees. The range comes in 20 versions: outside diameter from 350 to 650 mm, bore from 30 to 80 mm, cutting width from 4.4 to 6.2 mm and number of teeth from 60 to 72. Cutting material: alloy steel (HL) and carbide (HW). To consider before ordering: specially suited to machining wood-based materials coated with synthetic materials, singly or in packages, and NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9.5/46.5 + 2/7/42.
