Description

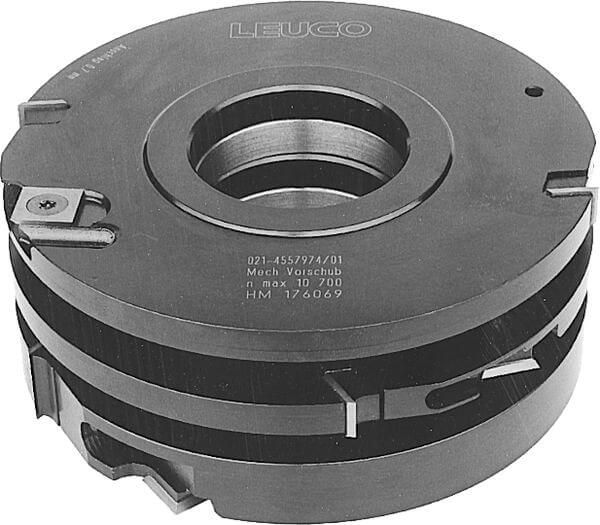

HW pre-jointing tool bodies LEUCO are intended for moulders with a Weinig grooved table. They are used for milling guide grooves in solid wood. What the LEUCO design provides: max. speed = 10,700 rpm, fitted with scribers, and ident. no. 180536 and 186498 without scribers. This range covers 6 versions: outside diameter of 140 mm, bore from 40 to 50 mm, cutting width from 10 to 39.5 mm and 2 teeth. Cutting material: carbide (HW). Notes on use: use along the grain, and note: when replacing older tool bodies, the 9 mm wide tool body can be replaced by the new 10 mm wide tool body by swapping the 10 mm wide ring for the 9 mm ring. The 10.5 mm wide tool body is replaced by the 10 mm wide tool body.
