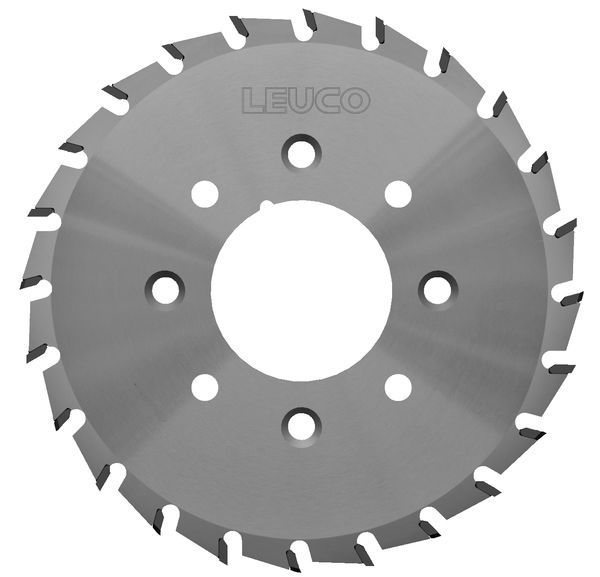

HW saw blades for edge banding machines for, version 2

Description

HW saw blades for edge banding machines for, version 2 equip automated lines for edge finishing. Applications intended by the manufacturer: cutting and trimming flush veneer or laminate edges or solid wood edge bands. Design details given by the manufacturer: special NoNoise chip clearance geometry, positive rake angle, with or without axial angle, and countersunk pin holes. Benefits claimed in use: very quiet, with a noise reduction of about 6 dB(A) when idling. The article group brings together 14 versions: outside diameter from 110 to 240 mm, bore from 30 to 40 mm, cutting width from 2.4 to 3.6 mm and number of teeth from 20 to 54. Cutting material: polycrystalline diamond (DP), alloy steel (HL) and carbide (HW). Conditions of use specified by LEUCO: Ident-No. 192494 NL=4/5.5/52 without chamfer, and direction of rotation to VDMA 8849.
