Leica Lino L2S-1 cross line laser level

Laser measurement & layout
Description

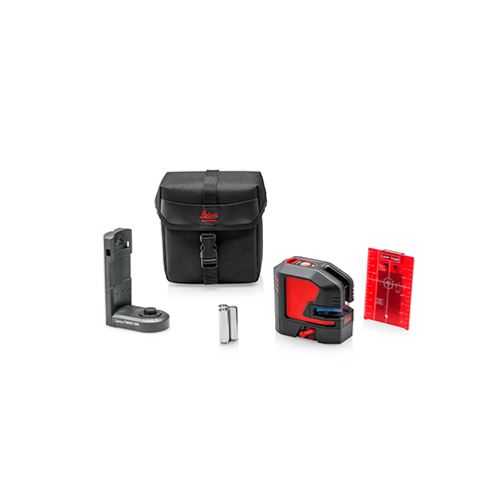

The Leica Lino L2S-1 is a cross line laser whose lines stay visible up to 25 m. It draws a horizontal and a vertical that extend beyond 180°, with automatic levelling within a ±4° range; if the support tilts further, the instrument signals it and stops emitting, avoiding any false line. The lock function switches levelling off and allows work on a slope. The stated levelling accuracy is ±0.2 mm per metre. With a laser receiver such as the Leica RGR 200, the range climbs to 80 m, useful outdoors or in bright light. The housing, IP54 protected, weighs around 530 g, screws onto a 1/4 thread and accepts 5/8 with its wall mount. It runs on a rechargeable Li-Ion cell or on batteries, for up to 44 hours depending on the mode chosen. A soft pouch, batteries, a TWIST 250 magnetic adapter swivelling through 250° and a safety manual are supplied.
Technical characteristics
Measuring equipment type
Beam color
Measurement accuracy
Protection rating (IP)
Energy source
Manufacturer reference
Reach
