Sun Breaker with Steel Frame and Angled Slats

Description

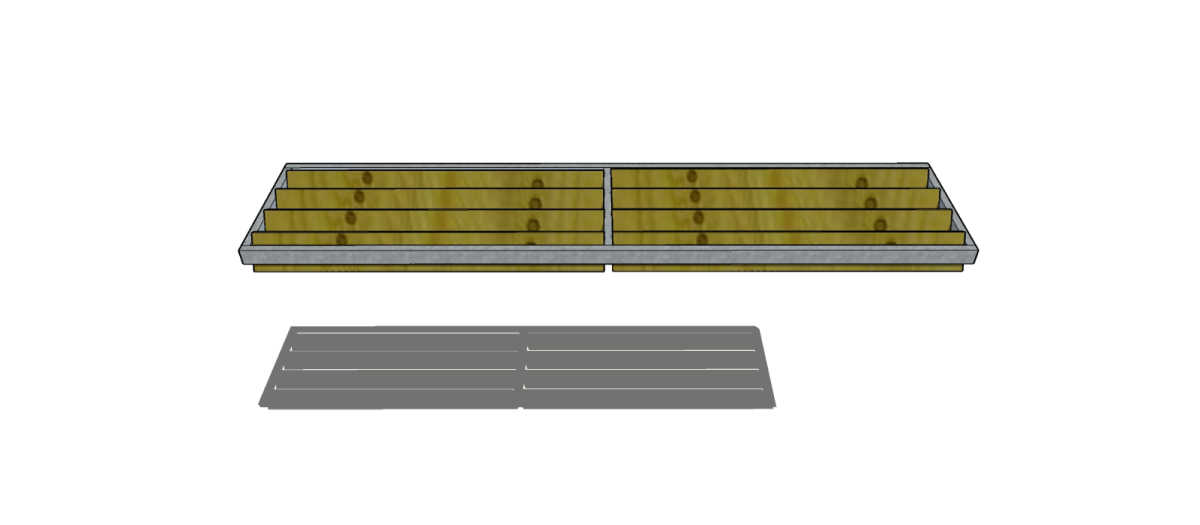

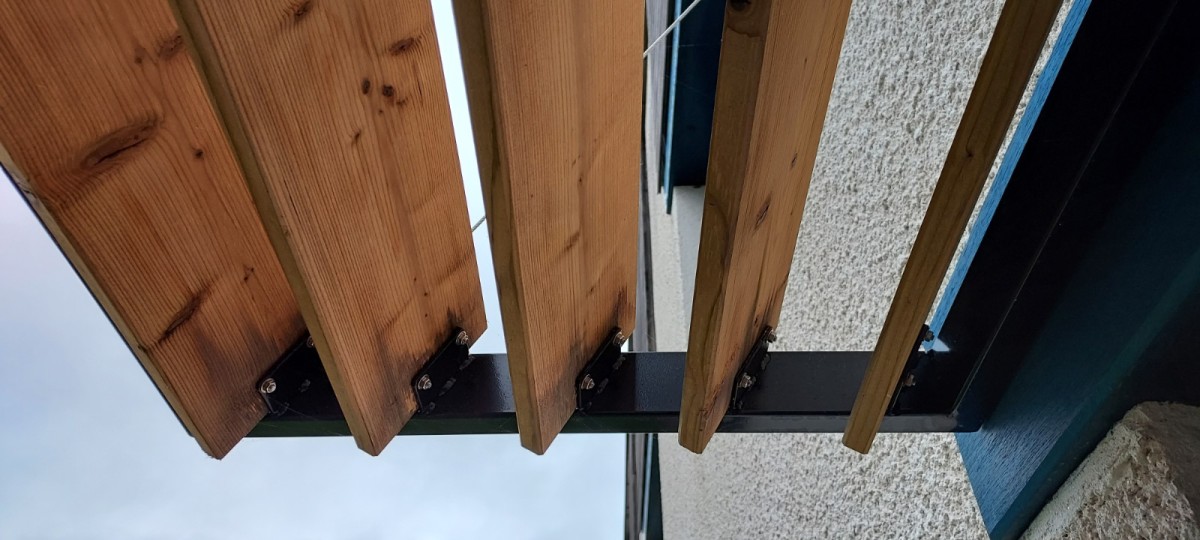

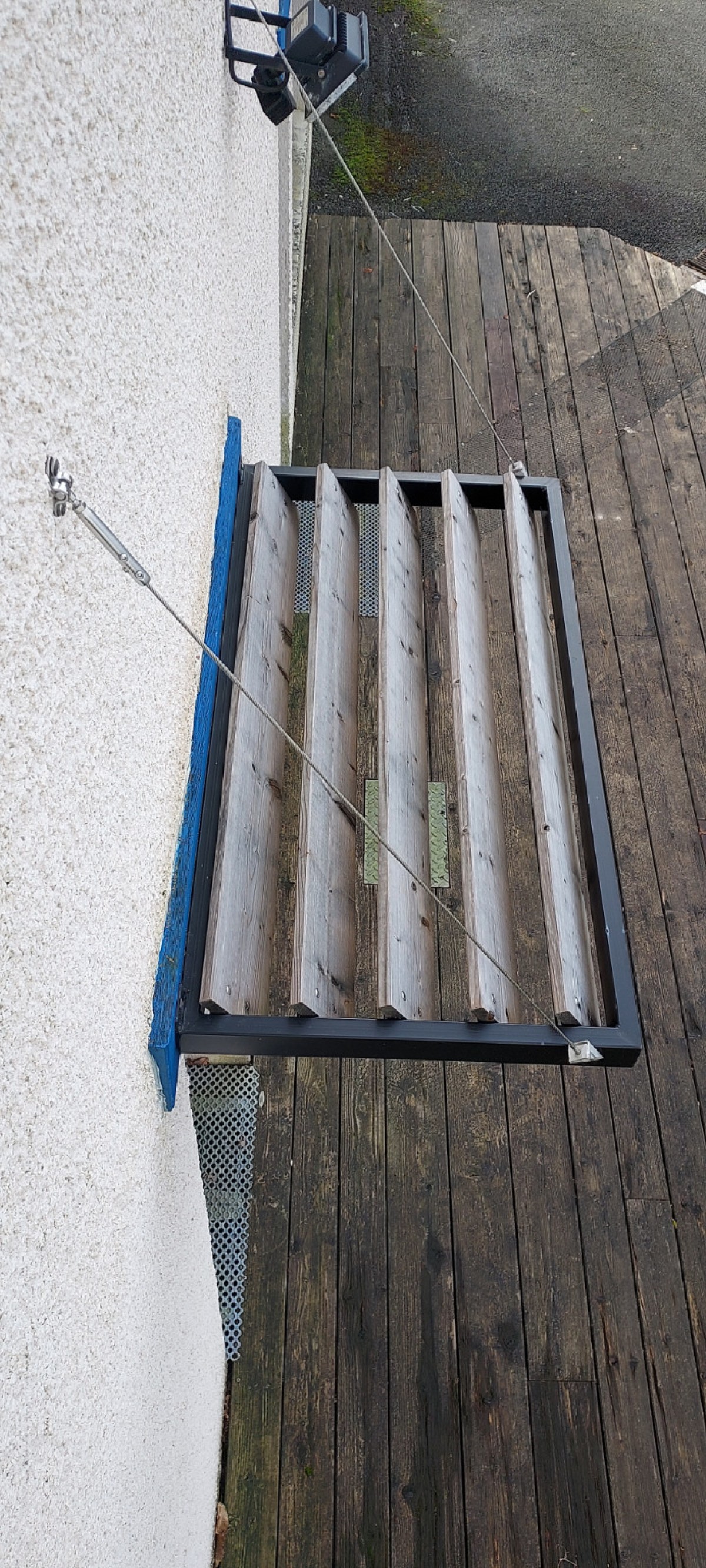

The sun breaker with galvanized steel frame and angled slats in THT spruce wood combines structural robustness and natural aesthetics. This fixed panel is designed to protect from the sun while bringing rhythm and lightness to your facades. The solid wood slats, angled and fixed by bolting, allow natural ventilation while filtering the light. This model suits both contemporary architectural projects and renovations looking for a durable wood-metal touch. Features Structure with galvanized steel frame, section 60 x 30 mm. Infill with angled slats in solid THT spruce wood, section 140 x 27 mm, bolted directly onto the frame. Stainless steel tensioner supplied to reinforce stability. Thermolacquering of the steel frame available as an option (upon consultation). Custom feasibility: – Minimum dimensions: 400 x 400 mm – Maximum dimensions: 4000 x 900 mm For any dimensions outside the standard format, a technical study is required. Wall mounting hardware is the responsibility of the installer. Advantages Architectural design combining metal and wood for a modern integration. Angled slats in solid wood for effective sun protection and a natural look. Galvanized steel structure resistant to weather, with the possibility of thermolacquering. Customizable manufacturing according to project constraints. Applications Ideal for facades exposed to the sun, decorative privacy screen, separation of outdoor spaces or fixed sun shade on facade. Suitable for residential, commercial or public-access buildings with aesthetic and performance requirements.

Caractéristiques techniques
