Weather Defence™ BD20 Panel

Description

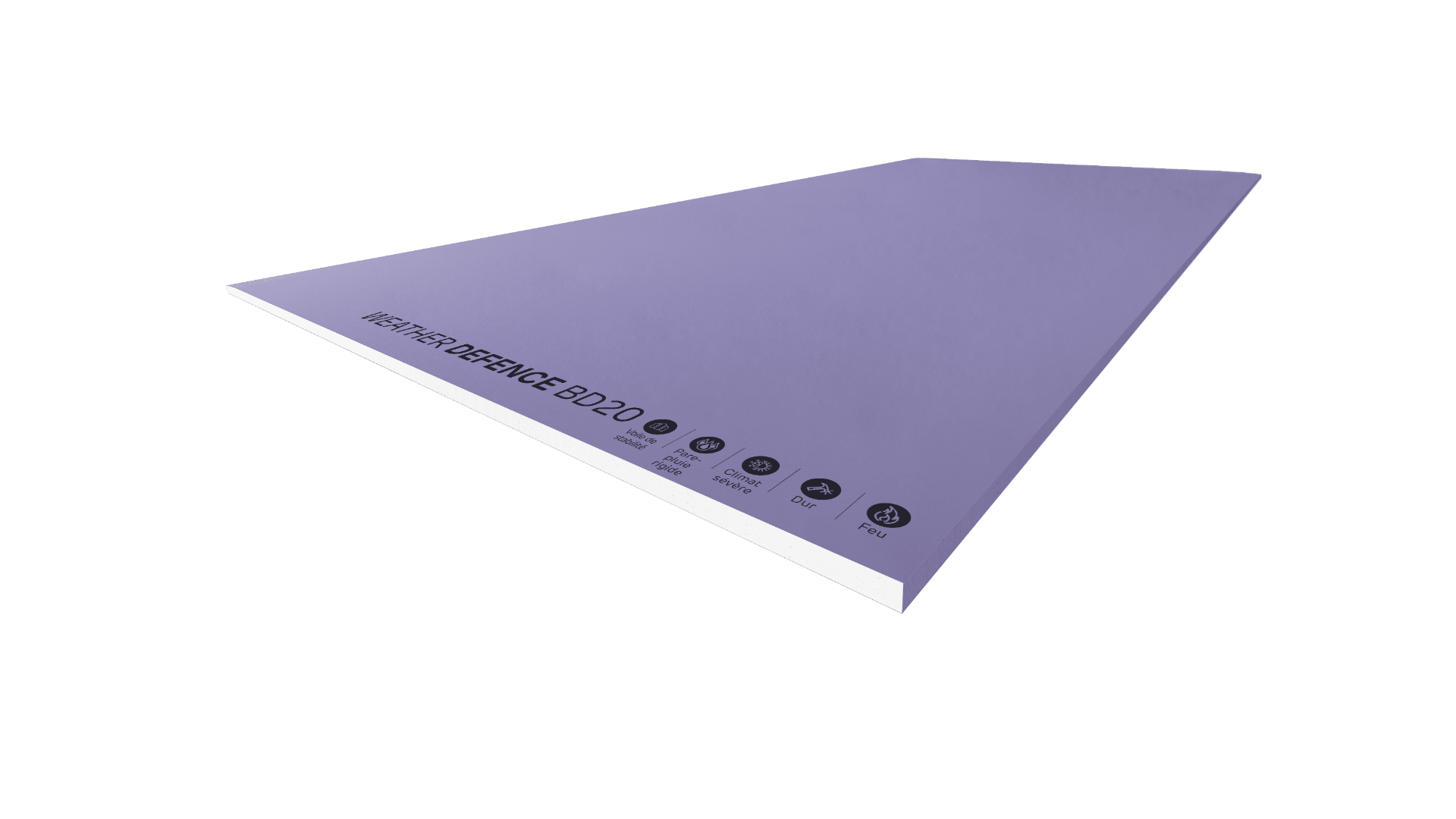

WEATHER DEFENCE™ BD20 is a next-generation multifunctional exterior panel intended for non-load-bearing timber-frame facades, for medium and large height buildings. It is a 3-in-1 solution combining: • a thermal screen, • a rigid rainscreen, • a stability brace. It is validated by a DTA N° 3.2/22-1074_V1. The panel is composed of a high-density calcium sulfate dihydrate (HDC) core, heavily water-repellent, sandwiched between two technical facings. Main characteristics High-density mineral material (HDC), water-repellent High-performance technical facings Thickness: 20 mm Width: 120 cm Available lengths: 280 cm and 300 cm Edges: straight (BD) Weight: ~18.8 kg/m² Applications Non-load-bearing exterior timber-frame facades New buildings and renovations Medium and large height timber buildings Perfect for extended worksite times (weather exposure up to 3 months) Benefits Fire resistance: exterior thermal screen EI30 Integrated rigid rainscreen Very high dimensional stability Stability brace for timber-frame facades Water vapor permeability (breathable walls) Resistance to severe climatic conditions High surface hardness and very good impact resistance

Fiche technique

Caractéristiques techniques
