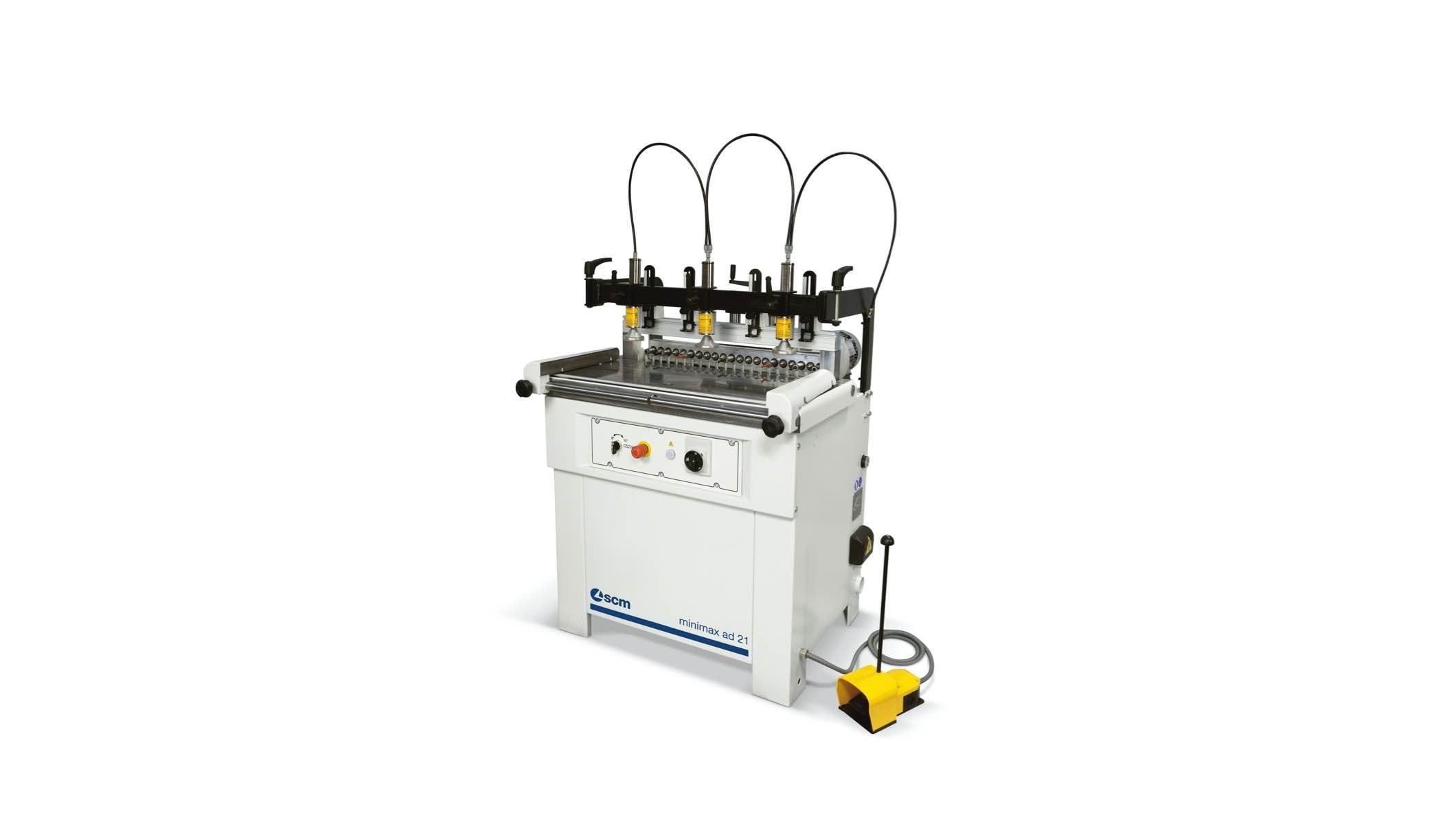

Multi-spindle boring machine SCM Minimax AD 21

Description

The Minimax AD 21 is a single-head multiple boring machine with 21 chucks, designed for joiners and demanding craftsmen. Its worktable measures 905 x 372 mm at a height of 900 mm, and it accepts panels up to 833 mm wide under the bridge for a workable thickness of 10 to 85 mm. The maximum tool diameter reaches 40 mm and the chuck rotation speed is 2800 rpm. A mechanical gauge gives fast, precise positioning of the side fences, and tilting the boring head to 45° speeds up the move from one machining phase to the next. For large panels, a 3000 mm graduated side fence with stops can be fitted and removed quickly. All the controls are grouped ergonomically at the front.

Technical sheet · 1 document(s)
