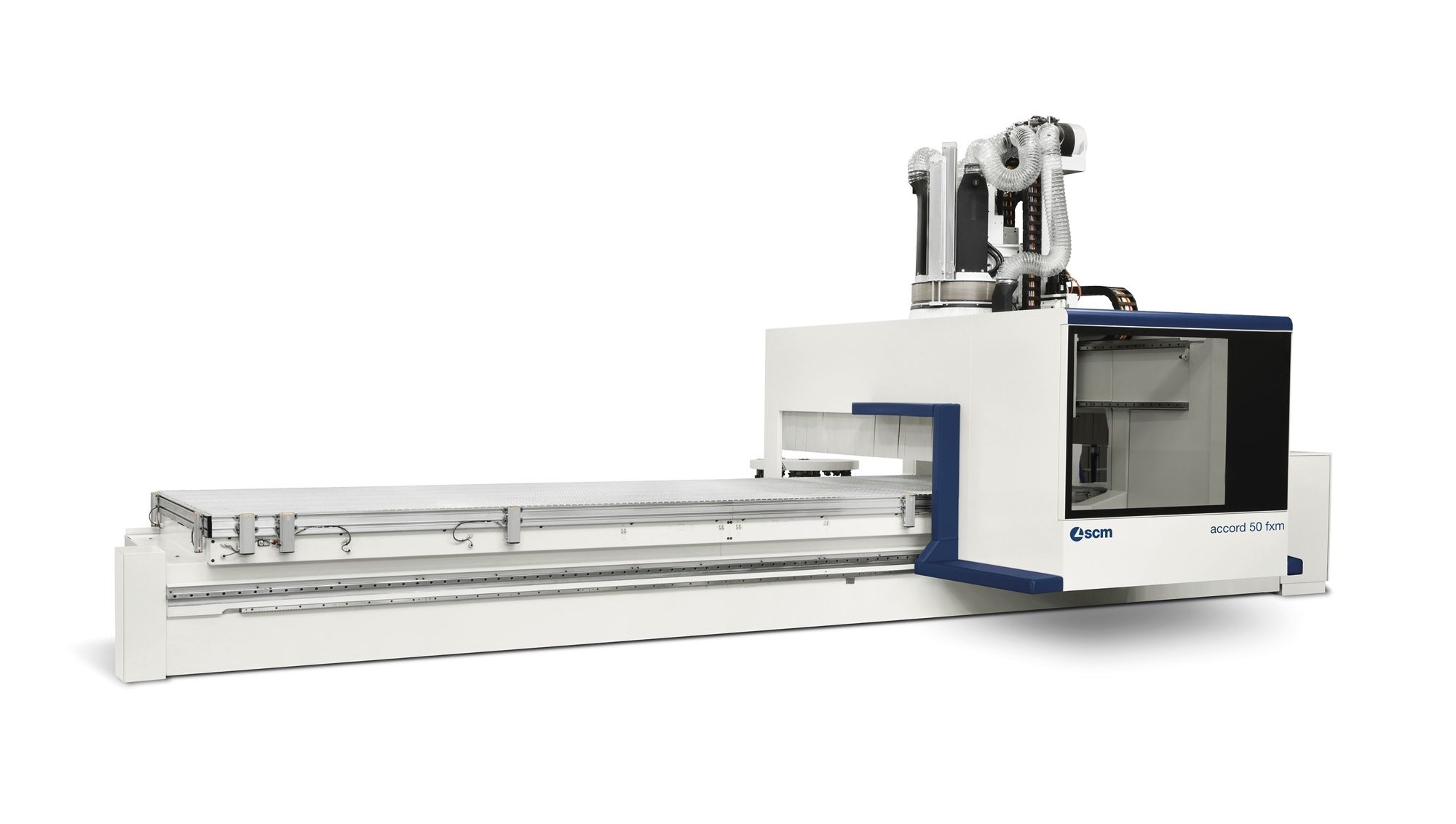

SCM Accord 50 FXM nesting machining centre

Description

Accord 50 FXM is a nesting machining centre with a multifunction table designed for machining thick workpieces, with a Z clearance of 500 mm, among the most generous in the Accord range. The work table extends up to 6,170 mm in X and 2,120 mm in Y. The 5-axis spindle develops up to 17 kW at 24,000 rpm, for accurate routing of solid components, doors or staircases. The axes travel at 95 m/min in X. The tool magazines add up to 72 positions in order to run operations one after another without stopping. The multifunction table with direct vacuum and T-slots provides reliable clamping, including of tall workpieces. The Maestro software suite drives the whole and simplifies programming.
